BAOBIWANXIANG Technologies Co., Limited

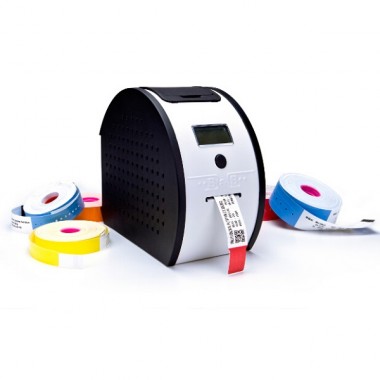

Barcode Wristband Printer BB777

Unique design, metallic body

Thermal printing

Simple and practical device, with convenient maintenance

Baobiwanxiang patented product

BB777- Born for the Printing of Small Labels and Wristbands

BB777 is capable of printing all sizes of thermal wristbands and thermal labels with maximum width of 4cm. It is the best choice for wristband and small label printing.

BB777’s 300dpi resolution enables it to print all sorts of one-dimensional barcodes and matrix (2D) barcodes with high precision.

The Most Professional Solution for Barcode Printing

BB777 is equipped with easy-to-use printing software and user-friendly interface. Regular specifications can be conveniently selected in the system to expedite the printing process.

BBDesigner software designed by Baobiwanxiang Technologies CO.,Ltd, is a good  option for users, which offers batch printing of data based on quick edits and batch uploads, and achieves systematic management of barcode printing.

Creating Perfect User Experience

1. Quick installation, easy to use, accessible for ordinary users.

2. Automatic feeding and alignment. Users only need to put printing materials into the printer and switch on the printer before the printing starts.

3. Self-explanatory software and operation interface. Out-of-the-box solution for ordinary users without professional training.

4. Suitable for various environments including factories, offices, warehouses, logistics companies, online stores, amusement parks, hospitals, shopping malls, activities and events, etc.

Printer Specifications

Resolution

300 dpi/12 dots per mm

Print Width

Maximum: 1.57” /40mm

Minimum: 0.39” / 10mm

Print Speed

Standard Speed: 2.5” (60mm/s)

Maximum Speed: 4 ips (100mm/s)

OPERATING CHARACTERISTICS

Environmental

Operating temperature: 40℉/4.4℃ to 104℉/40℃

Storage temperature: -40℉/-40℃to 140 ℉/80℃

Operating humidity: 20%-85% non-condensing

Storage humidity: 5%-85% non-condensing

Electrical

Universal power supply (PFC compliant) 100-240VAC, 50-60Hz (70 Watts) External Power Supply

Physical Characteristics

Width: 125mm

Height: 213.5mm

Depth: 265.5mm

Weight (G.W): 3.29kg

BAOBI PRINTABLE ID SOLUTION

Software

BAOBI Printer Driver

BBDesigner

Programming

BPL+ (Application Programming Interface)

Networking /Connectivity

USB 2.0 interface

Ethernet 10/100 interface (RJ45)

Wireless 802.11 b/g/n (Optional)

Font and Graphic

Support user-defined fonts and graphics-including custom logo

Font and Barcode rotation: 90, 180, 270 degrees

Barcode

Linear Barcode: Code 39, Code 128A, B&C, UCC/EAN-128, Code 93, Codabar, Interleaved 2 of 5, UPC-A, UPC-E, UPC-A with 2 and 5 add on, UPC-E with 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on, Postnet, Standard 2 of 5, Industrial 2 of 5, LOGMARS, MSI, Codabar and GS1 Databar (formerly RSS), Code 11, China Post.

2-Dimensional Barcode: PDF-417, Maxicode, Data Matrix, QR code, Aztec.

Accessories

Software CD Disk (BBDesigner / BAOBI Printer Driver)

Warranty Card

USB Port Cable

Power Adapter

Printer Head Cleaning Kit

BAOBI Wristband Roll Wall (Optional)

BAOBI Wristband Load Cover (Optional)

BAOBI Label Holder WH01 (Optional)
