Two Rolls Loading for labels & wristbands:

Choose Upper Roll for label or wristband

Choose Down Roll for label or wristband

One Roll for label ,another Roll for wristband

Or Two Rolls for labels

Or Two Rolls for wristbands

Select Upper Roll Printing or Down Roll Printing with DRIVER setting

Or Select Upper Roll Printing or Down Roll Printing by switching Keyboard Buttons

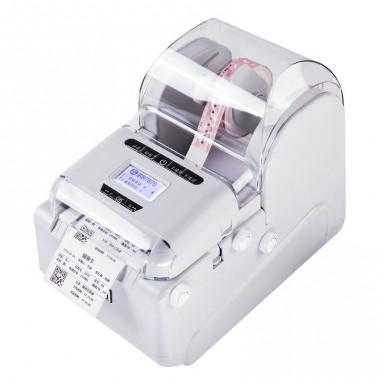

BB787S FEATURES & FUNCTIONS

Direct thermal printing with maximum width of 108mm. 300dpi resolution enables it to print all sorts of one-dimensional barcodes, 2D barcodes and various graphics with high precision.

Two Rolls loading for labels or wristbands with easy switch button for any selection. Patented design of printing path with open buttons makes it easier to fix paper jam.

Open printer body design supports labels or wristbands loading without limitation of roll size. Clear cover available for anti dust and paper delivering observation.

BB787S APPLICATION

Heath Care

*Sample Tracking / Drug Management / Infusion Management / Patient Identification

Service & Leisure

*Water Park / Amusement Park / Concert / Cruise / Hotel / School Tickets Or Wristbands Printing

Retail

*Assets Management / Sales & Storage Management / Commodity Label Printing

Manafacturing / Logistics / Warehouse

*Cargo Tracking / Component Label Printing

Company

*Attendance Management / File Consolidation / Access Control

FEATURES

Thermal printing

Two Rolls design, easy to switch printing material

More easier and faster to set

Equipped with multiple languages

With LCD, real-time display printing status and quantities.

Label printing software supports the printing of different language texts

Standard tear paper mode

Unique energy control of printer head

PRINTER SPECIFICATIONS

Resolution

300 dpi / 12 dots per mm

Print Width

Maximum: 4.25” / 108mm

Minimum: 0.39” / 10mm

Print Speed

Selectable

Standard Speed: 2.5” / 60mm per second

Maximum Speed: 5 ips / per second

Two Rolls

Upper Roll / Down Roll, selectable.

OPERATING CHARACTERISTICS

Environmental

Operating temperature: 40℉/4.4℃ to 104℉/40℃

Storage temperature: -40℉/-40℃ to 140 ℉/80℃

Operating humidity: 20%-85% non-condensing

Storage humidity: 5%-85% non-condensing

Electrical

Universal power supply (PFC compliant) 100-240VAC, 50-60Hz (60 Watts) External Power Supply

Physical Characteristics

Width: 225mm

Height: 306mm

Depth: 345mm

Weight (N.W): 3.32kg

BAOBI PRINTABLE ID SOLUTION

Software

BAOBI Printer Driver

BBDesigner

Programming

BPL+ (Application Programming Interface)

Networking /Connectivity

USB 2.0 interface

Ethernet 10/100 interface (RJ45)

Wireless 802.11 b/g/n (Optional)

Font and Graphic

Support user-defined fonts and graphics-including customized logo

Font and Barcode rotation: 90, 180, 270 degrees

Barcode

Linear Barcode: Code 39, Code 128A, B&C, UCC/EAN-128, Code 93, Codabar, Interleaved 2 of 5, UPC-A, UPC-E, UPC-A with 2 and 5 add on, UPC-E with 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on, Postnet, Standard 2 of 5, Industrial 2 of 5, LOGMARS, MSI, Codabar and GS1 Databar (formerly RSS), Code 11, China Post.

2-Dimensional Barcode: PDF-417, Maxicode, Data Matrix, QR code, Aztec.

Accessories

Software CD Disk (BBDesigner / BAOBI Printer Driver)

Warranty Card

USB Port Cable

Power Adapter

Power Cord

BAOBI Label Holder WH01 (Optional)
