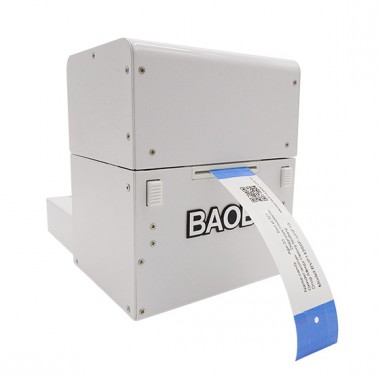

Small body and extremely compact design;

Support intelligent connection, easy to operate, meet the needs of hospital applications;

Excellent printers performance supports simultaneously print and write RFID data, safer and more effective.

Unique RFID writing success tips/failure reminder.

I. Standard Features
* Printing mode: Thermal printing,Thermal transfer printing
* Three setting modes: Print and Write RFID, Print Only, Write RFID only

* Fast and easy ribbon loading design

* Simple and convenient for label replacement

* Equipped with LCD screen, show the print status and print quantity in real time.

* Printing path with open buttons makes it easier to fix paper jam.

* Standard paper tearing mode

* Unique energy control of printer head

II. Printer Specifications
Printing Resolution:203dpi/8 dots per mm
Print width:Maximum 2” / 54mm

Applicable to different styles of Baobi thermal wristband and Baobi thermal transfer wristband

Printing speed:Print speed is selectable.

Standard speed: 2.5 ”/ s (60 mm / sec)(5 seconds per wristband)

Maximum speed: 5 ips (120mm/s)

III. Medium Characteristics

Maximum Wristband/Label Width: 0.39"/10 mm to 2" / 54 mm

Maximum medium roll size:5 ”/ 127 mm (external diameter)

Medium thickness:0.003" / 0.08 mm to 0.0075" / 0.19 mm

Medium type:Thermal/Thermal Transfer

Applicable ribbon specifications

Shaft core: 0.5 ”

Shaft length: 56mm

Ribbon width: within 54mm

Ribbon roll external diameter: 36mm or less

(ribbon length 90m)

IV. RFID technical parameters

Radio frequency protocol

EPC Global UHF Class 1 Gen 2/ISO 18000-6C

Supports chips

compatible with the EPC Global UHF

Class 1 Gen 2/ISO 18000-6C protocol, including Monza 3, Monza 4D, Monza 4E, Monza 4QT, Monza 5,Monza R6, Monza R6-P, Monza R6-A,Monza S6-C,UCODE G2iL, UCODE G2iM, UCODE 7, UCODE 7m,UCODE 7xm,UCODE 7xm+, UCODE 8, UCODE 8m,UCODE DNA, Alien Higgs 3, Alien Higgs 4, Alien Higgs-EC (H5), etc.

Working frequency
920MHz-928MHz

865MHz-868MHz(Optional)

Work status indication
Display
Antenna
Built in

V. Operating Characteristic

Environmental

Operating temperature:40 F/4.4 c to 104F/40 C

Storage temperature:-40 F/-40 C to 140 F/80C

Operating humidity:20%-85% non-condensing

Storage humidity:5%-85% non-condensing

Electrical

Universal power supply(PFC compliant)

100-240VAC, 50-60Hz (60Watts) External

Power Supply

Physical specification
* Width: 148 mm
* Height: 175 mm
* Length: 203 mm
* Weight(N.W): 2.5kg

VI. Working Parameters
Software
* BAOBI Printer Driver
* BBDesigner
programming
* BPL+ (BAOBI Printer Interface File)

Networking / Connectivity

* USB2.0

* Serial port RS232

* Wireless802.11b/g/n(Optional)

Font/Graphics
* Support user-defined fonts and graphics, including custom logo Font and Barcode rotation:90,180,270 degrees.

Barcode

1D barcode:

Code 39, Code 128A, B&C, UCC/EAN-128,Code 93, Codabar, Interleaved 2 of 5, UPC-A,UPC-E, UPC-A with 2 and 5 add on, UPC-E With 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on,Postnet, Standard 2 of 5, Industrial 2 of 5,LOGMARS, MSI, Codabar and GS1 DataBar(formerly RSS), Code 11, China Post

2D barcode:

PDF-417, Maxicode, DataMatrix, QR code, Aztec

VII.Accessories
* Warranty Card
* USB Port Cable

* Power Adaptor

* Power Cord
