The RFID technology which is based on the Internet of Things can be widely used in various fields such as anti- counterfeit safety, traffic foods, books, animals, agriculture, power management, electronic payment, environmental monitory, smart home, social services, public hygiene and green ecology.

Applications: Public Transportation, Access Management, Electronic Toll Collection, Car Parking, School and

Campus Cards, Employee Cards, Internet Cafes, Loyalty, Event Ticketing, Voucher and Coupons, Product Authentication, Electronic Shelf Labels

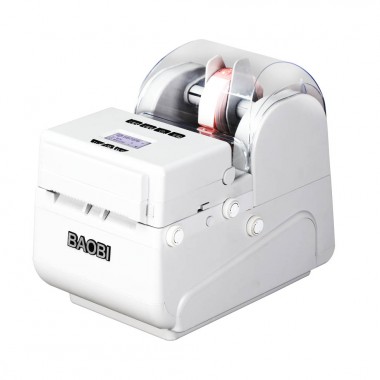

FEATURES

◆Print Data and Write Data simultaneously.

◆Two Rolls Design for Printing Material, Easy to Switch Printing Material and Printing Channel.

◆Printer Communication Port is with USB, Ethernet, and WIFI (Optional).

◆LCD Display can Show Real-Time Printing Status and Quantities.

◆Equipped with Multiple Languages, and Software Supports the Printing of Different Language Texts.

◆Direct Thermal Printing & Thermal Transfer Printing

RFID TECHNICAL PARAMETERS

RF Protocols

EPC Global UHF Class 1 Gen 2/ISO 18000-6C

Supported Chips

Support the EPC Global UHF Class 1 Gen 2/ISO 18000-6C protocols of chips，including Monza 3，Monza 4D，Monza 4E，Monza 4QT，Monza 5，Monza R6，Monza R6-P，Monza R6-A，Monza S6-C，UCODE G2iL，UCODE G2iM，UCODE 7，UCODE 7m，UCODE 7xm，UCODE 7xm+，UCODE 8，UCODE 8m，UCODE DNA，Alien Higgs 3，Alien Higgs 4，Alien Higgs-EC(H5) etc.

Work Frequency

920MHz - 925MHz

Work Status Indicator

Displayed in the screen

Antenna

Built-in

PRINTER SPECIFICATIONS

Resolution

300 dpi/12 dots per mm

Print Width

Maximum: 4.25” /108mm

Minimum: 0.39” / 10mm

Print Speed

Selectable

Standard Speed: 0.47” /12mm per second

Maximum Speed: 2.5 ips/60mm per second

Printing mode

Direct thermal Printing, Thermal Transfer Printing

Two Rolls

Upper Roll/ Down Roll, selectable

Applicable thermal printing ribbons specification

Shaft core: 0.5 inch

Length of shaft: 108mm

Width of thermal transfer ribbon: < 108mm

Outer diameter of thermal transfer ribbon roll: < 36mm

OPERATING CHARACTERISTICS

Environmental

Operating temperature: 40℉/4.4℃ to 104℉/40℃

Storage temperature: -40℉/-40℃to 140 ℉/80℃

Operating humidity: 20%-85% non-condensing

Storage humidity: 5%-85% non-condensing

Electrical

Universal power supply (PFC compliant) 100-240VAC, 50-60Hz (60 Watts) External Power Supply

Physical Characteristics

Width: 225mm

Height: 306mm

Depth: 345mm

Weight (N.W): 4.0kg

BAOBI PRINTABLE ID SOLUTION

Software

BAOBI Printer Driver

BBDesigner

Programming

BPL+ (Application Programming Interface)

Networking /Connectivity

USB 2.0 interface

Ethernet 10/100 interface

Wireless 802.11 b/g/n (Optional)

Font and Graphic

Support user-defined fonts and graphics-including custom logo

Font and Barcode rotation: 90, 180, 270 degrees

Barcode

Linear Barcode: Code 39, Code 128A, B&C, UCC/EAN-128, Code 93, Codabar, Interleaved 2 of 5, UPC-A, UPC-E, UPC-A with 2 and 5 add on, UPC-E with 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on, Postnet, Standard 2 of 5, Industrial 2 of 5, LOGMARS, MSI, Codabar and GS1 Databar (formerly RSS), Code 11, China Post.

2-Dimensional Barcode: PDF-417, Maxicode, Data Matrix, QR code, Aztec.

Accessories

Software CD Disk (BBDesigner / BAOBI Printer Driver)

Warranty Card

USB Port Cable

Power Adapter

Power Cord

BAOBI Label Holder WH01 (Optional)

BAOBI Ribbon Shaft BRS01 (Optional)
