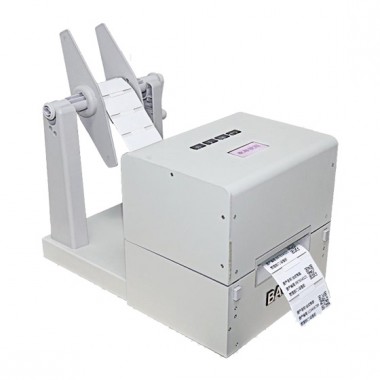

BAOBIWANXIANG patented design,  unique flexible anti-metal label printing and RFID writing;
Easy to operate, convenient for anti-metal label applications;
Excellent printing and writing RFID data simultaneously performance, data information is more secure
Unique RFID writing success tips / fail reminder.
Precise positioning,  support printing and RFID writing on label with minimun antenna gap of 3mm;
One-button operation printing and simultaneously RFID writing,efficient and convenient;
Large-capacity ribbon loading design,  support ribbon roll the ribbon length of 300m.

RFID printing technology base on Internet of Things is widely used.It can be used in many fields such as anti-counterfeiting security, transportation, food, library, animals, agriculture, power management,electronic payment, environmental monitoring, smart home, convenience service, public health, and green ecology.

Standard Features

* Print mode:direct thermal printing ,thermal transfer printing

* Three setting modes: print and write RFID,print only, write RFID only

* Precise positioning, can operate the printing and RFID writing on Label with minimun antenna gap of 3mm

* Fast and easy ribbon loading design

* Simple and convenient for label replacement

* Equipped with LCD screen, show the print status and print quantity in real time.

* Printing channel can be easily opened,quickly clearing paper jams, etc.

* Special removable sensor positioning control, flexible consumable compatibility

* Unique energy control of printer head

Printer Specifications

Printer Resolution

203dpi / 8 dots per mm

Print Width

Maximum 4" / 108mm

Print Speed

Print speed is selectable.

Standard Speed: 2.5 " / s (60mm / sec)

Medium Characteristics

Maximum Width

4" / 108mm

Medium Thickness

0.25 mm to 2.0mm

Medium Type

Thermal / Thermal Transfer Medium /

Flexible Anti-metal tag

Label Interval

Minimum space of 3mm

Applicable Ribbon

Specifications

Shaft core: 1.0"

Shaft length: 110mm

Ribbon width: within 110mm

Ribbon length: within 300m

RFID Technical Parameters

Frequency Protocol

EPC Global UHF Class 1 Gen 2/ISO 18000-6C

Support Chip

Supports chips compatible with the EPC Global UHF Class 1 Gen 2/ISO 18000-6C protocol, including Monza 3,Monza 4D, Monza 4E, Monza 4QT,Monza 5, Monza R6, Monza R6-P,Monza R6-A,Monza S6-C, UCODE G2iL,UCODE G2iM, UCODE 7, UCODE 7m,

UCODE 7xm,UCODE 7xm+, UCODE 8,UCODE 8m, UCODE DNA, Alien Higgs 3,Alien Higgs 4, Alien Higgs-EC (H5), etc.

Working Frequency

920MHz-925MHz (other frequencies are optional before leaving the factory)

Work Status Indication

Displayed in the screen

Antenna

Build-in

Operating Characteristic

Environmental

Operating temperature:

40 F/4.4 c to 104F/40 C

Storage temperature:

-40 F/-40 C to 140 F/80C

Operating humidity:

20%-85% non-condensing

Storage humidity:

5%-85% non-condensing

Electrical

Universal power supply(PFC compliant)

100-240VAC, 50-60Hz (60Watts)

External Power Supply

Physical specification

*Width: 220mm

* Height: 248mm

* Length:333mm

* Weight(N.W): 4.5kg

Working Parameters

Software

*BAOBIWANXIANG Printer Driver

*BBDesigner

Programming

*BPL+ (BAOBI printer interface file)

Networking / Connectivity

*USB2.0

*RS-232C serial interface

*Ethernet 10/100 interface (RJ45)

*Wireless 802.11 b/g (* optional)

Fond and Graphic

Support user-defined fonts and graphics-including custom logo

Font and Barcode rotation:90,180,270 degrees

Barcode

*1D barcode: Code 39, Code 128A, B&C, UCC/EAN-128, Code 93, Codabar, Interleaved 2 of 5,UPC-A, UPC-E, UPC-A with 2 and 5 add on, UPC-E With 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on,Postnet, Standard 2 of 5, Industrial 2 of 5,LOGMARS, MSI, Codabar and GS1 DataBar (formerly RSS), Code 11, China Post

*2D barcode: PDF-417, Maxicode, DataMatrix,QR code, Aztec

Accessories

Warranty Card

USB Port Cable

Power Adaptor

Power Cord
