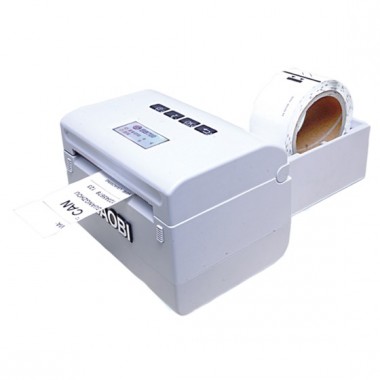

RFID Airline Boarding Passes and Baggage Tag Printer BB700

High Performance, High Stability, Compact Design

RFID Baggage Tag Printer

Designed and made for airlines and airports

Lightweight Shape

Width 140 * Depth177* Height: 143 (mm)

Weight 1.57kg

High-End Performance

Fast printing speed and high stability

Reliable, Durable and Easy to Maintain

Through opening and closing the shell, it is easy to open printer channel and greatly reduces maintenance needs

Data Accuracy

Reduce the check-in process and greatly reduce the baggage error rate

PRINTER SPECIFICATIONS

Resolution： 203 dpi

Print Width :Maximum: 4.25” /108mm ，Minimum: 0.39” / 10mm

Print Speed ：Selectable

Standard Speed:2.5” / 60mm per second

Maximum Speed: 5 ips / 120mm per second

Printing mode ：Direct thermal Printing

Work Status Indicator： Displayed in the screen

RFID TECHNICAL PARAMETERS

RF Protocols

EPC Global UHF Class 1 Gen 2/ISO 18000-6C

Supported Chips

Support the EPC Global UHF Class 1 Gen 2/ISO 18000-6C protocols of chips , including Monza 3 , Monza 4D , Monza 4E , Monza 4QT , Monza 5 , Monza R6 , Monza R6-P , Monza R6-A , Monza S6-C , UCODE G2iL , UCODE G2iM , UCODE 7 , UCODE 7m , UCODE 7xm , UCODE 7xm+ , UCODE 8 , UCODE 8m , UCODE DNA , Alien Higgs 3 , Alien Higgs 4 , Alien Higgs-EC(H5) etc.

Work Frequency ：920MHz - 925MHz, 865MHz - 868MHz (optional)

RFID Writing Status ：Special prompt for RFID writing data success or not

Antenna ：Built-in

OPERATING CHARACTERISTICS

Environmental

Maximum Working Power: 60W

Maximum Standby Power: 4.5W

Operating Environment: 5 to 35℃ / 10 to 80% RH Alarm buzzer,  altitude 0-5000m

Storage Environment: -20 to 60℃ / 8 to 90% RH

Electrical

Universal power supply (PFC compliant) 100-240VAC, 50-60Hz (60 Watts) External Power Supply

Physical Characteristics

Main Part: Width: 140mm Depth: 177mm Height: 143mm

Bracket: Width: 189mm Depth: 76mm Height: 73mm Weight (N.W): 1.75kg

General Specification

Networking /Connectivity

USB 2.0 interface

RS-232 Serial Interface

Ethernet 10/100 interface (RJ45)

Font and Graphic

Support user-defined fonts and graphics-including custom logo Font and Barcode rotation: 90, 180, 270 degrees

Barcode(IATA Compliant):

1D: Interleaved 2of 5 / Industrial 2of 5 / Code 39 & Code 128 / EAN 13

1D: UPC-A / UPC-E / EAN8 / JAN8 / JAN13 / Codabar(NW-7)/ Code39 / Code93

2D: PDF417 / Aztec / Data Matrix / QR / Windows Driver

Accessories

Warranty Card

USB Port Cable

Power Adapter

Power Cord
