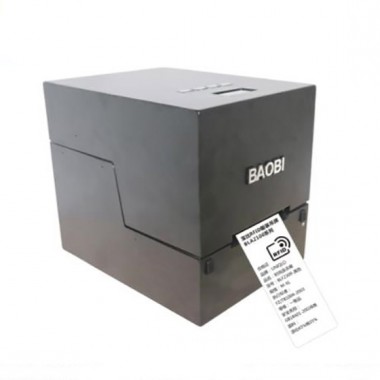

BAOBI patent design,unique hang tag printing and RFID writing

Easy to operate, convenient for clothes hang tag application requirements;

Excellent printing and writing RFID data performance, data information is safer

Unique RFID writing success tips/failure reminder

Printer Specifications

Resolution:

203dpi/8 dots per mm

Print Width:

Maximum printing width:4’’/108mm

Print Speed:

Selectable

Standard printing speed:2.5’’/s(60mm/s)

Standard Features:

*Print mode: Thermal transfer printing

* Three setting modes: Print and Write RFID, Print Only, Write RFID only

* Fast and easy ribbon loading design

*Simple and convenient for label replacement

*Equipped with LCD screen, show the print status and print quantity in real time.

* Printing path with open buttons makes it easier to fix paper jam.

* Unique single paper feeding control

*Unique energy control of printer head.

Media Characteristics

Maximum printing width:

4 inches/108 mm

Media Thickness:

0.25 mm to 1.1 mm

Media Type:

Thermal / Thermal transfer media

Applicable ribbon specifications:

Shaft: 0.5 inches

Shaft length: 110mm

Carbon width: within 108mm

Outer diameter of the ribbon roll: within 36mm (the length of the ribbon is 90m)

RFID Technical Parameters

RF Protocol

EPC Global UHF Class 1 Gen 2/ISO18000-6C

Supported chips

Support compatible with EPC Global UHF Class 1 Gen 2/

ISO 18000-6C protocol chips, including Monza 3,

Monza 4D, Monza 4E, Monza 4QT,

Monza 5, Monza R6, Monza R6-P,

Monza R6-A, Monza S6-C, UCODE G2iL,

UCODE G2iM, UCODE 7, UCODE 7m,

UCODE 7xm, UCODE 7xm+, UCODE 8,

UCODE 8m, UCODE DNA, Alien Higgs 3,

Alien Higgs 4, Alien Higgs-EC(H5), etc.

working frequency:

920MHz-925MHz (other frequencies are optional before leaving the factory)

Work status indication:

Display screen

Antenna:

Built-in

Operating Parameters

Environmental Parameters:

Working Temperature: 40 F/4.4 c to 104F/40 C

Storage Temperature: -40 F/-40 C to 140 F/80C

Working Humidity: 20%-85% non-condensing

Storage Humidity: 5%-85% non-condensing

Electrical parameters:

External autoranging power supply (in line with PFC regulations) Input:

100-240VAC, 50-60Hz (60Watts)

Physical specifications

Width: 220 mm

Height: 300mm

Length: 320mm

Weight: 3kg (net weight)

Working parameters

Software

BaobiPrinterDriver

BBDesigner

Programming:

BPL+ (BAOBI Programming Interface)

Networking/Connection:

USB 2.0

Barcode:

Linear Barcode:

Code 39, Code 128A,B&C ，UCC/EAN-128, Code

93, Codabar, Interleaved 2 of 5, UPC-A, UPC-E,

UPC-A with 2 and 5 add on, UPC-E with 2 and 5

add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add

on, EAN 8 with 2 and 5 add on, Postnet, Standard

2 of 5, Industrial 2 of 5, LOGMARS,MSI,Codabar

and GS1 DataBar(formerlyRSS),Code 11, China

Post

2-Ddimensional Barcode:

PDF-417,Maxicode,DataMatrix,QR code, Aztec

Random Accessories

Warranty Card

USB Port Cable

Power Adapter

Power Cord
