RFID Thermal Printable Wristband can be used in all occasions for intelligent personnel identification. High frequency electronic chip has strong penetration, can be used for non-contact and non visual identification, anti-human interference, and good environmental compatibility. Compared with traditional handwritten or printed or printed bar code wristbands, RFID wristbands support the storage of personnel identity information data in the chip, and the surface wear does not affect the normal reading and writing function of the chip, which has better personnel identity recognition advantages.

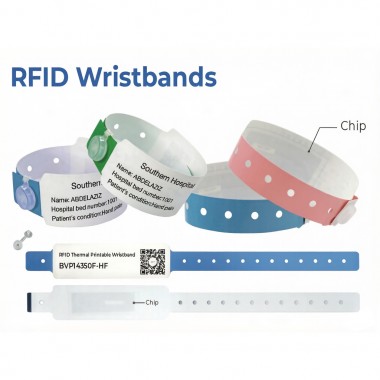

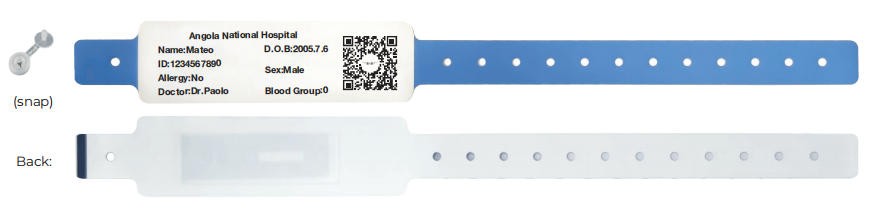

Baobi RFID Thermal Printable Wristband BVP14350F-HF03 is a combination of traditional barcode wristband and high- frequency passive RFID technology. In hospital management, as a medium to realize the non visual identification of patients, it can replace the existing patient information card in front of the hospital bed, and conveniently realize a series of operations such as rapid identification of patients' identities, efficient data collection, accurate verification, medical order execution and management, which greatly improves the efficiency and quality of nursing patients, and accelerates the intellectualization of the hospital The digitalization process makes medical treatment activities and medical services Intelligent in a real sense.

Wristband Size: 285mm×29mm

Print area: 91mm×28mm

Bands Per Roll: 100PCS

Quantity: 100 pcs per box

Available Colors:

BVP14350F-01-HF03 White

BVP14350F-03-HF03 Red

BVP14350F-04-HF03 Green

BVP14350F-05-HF03 Blue

BVP14350F-06-HF03 Yellow

BVP14350F-09-HF03 Pink

RFID Thermal Printable Wristband Application

Personnel identification;

Mobile nursing;

Patient management;

Quickly and accurately read patient information in infusion,

inspection, surgery, sudden disease and other links;

Ensure the correctness of patients, drugs, dosage, time and usage;

Personnel flow monitoring and regional positioning.

Chip Performance Parameters

Chip: FM11RF08

The FM11RF08S has an 8K bits EEPROM which has 16 sectors with 4 blocks. One block consists of 16 bytes each.

RF Interface

ISO/IEC 14443-A

Operating frequency: 13.56 MHz

Fast communication baud rate: 106Kbit/s

Typical transaction time: ＜100ms

Operating distance: up to 100mm (depending on antenna geometry)

Operating distance: up to 10cm (depending on various parameters as e.g. field strength and antenna geometry)

Half duplex communication protocol using handshake

Encryption algorithm compatible with M1 standard

Contactless transmission of data and supply energy (no battery needed)

EEPROM

1024x8 bits EEPROM memory, Organized in security separated

16 sectors supporting

multi-application use

10 years data retention

Write endurance of 200,000 cycles

Security

UID is unchangeable

Mutual three pass authentication

High security level data communication

Each sector has two keys separately

User can defines assess conditions for each memory block flexibly

Security and anti-crack ability have been enhanced comparing with the old version chip

RFID Wristband BVP14350F-HF03 Features

Thermal material, soft bacteriostasis, with soft plastic buckle, comfortable to wear

Antibacterial and anti allergy, safety assurance, quality assurance

Flexible and durable, and can be worn for more than a month

The chip is embedded, which is highly waterproof, alcohol resistant and not easy to be damaged

RFID non visual recognition, not afraid of blocking

Anti human interference, fast identification

Information encryption to fully protect patient privacy

RFID chip has a unique ID number in the world, which cannot be changed or forged

Good environmental compatibility,wear or contamination of the surface will not affect the information reading

One-time use, prevent transfer or removed,make sure the uniqueness and correctness of identified person

Thermal printing, no consumables, high efficiency and environmental protection, cost saving

Logo Preprinted,includes texs,barcodes,QR codes pictures etc.
