BAOBIWANXIANG Technologies Co., Limited

BAOBIWANXIANG patented design, unique flexible RFID tag printing and RFID HF writing

It is easy to operate and convenient for RFID tags with different thicknesses

Excellent performance of printing and writing RFID data at the same time, making data information more secure

Unique RFID write success prompt / failure prompt

Accurate positioning, printing, reading and writing. The minimum tag antenna spacing is 3mm

One click printing and writing RFID at the same time, which is efficient and convenient;

Large capacity carbon belt loading design, which can place the carbon belt roll with a length of 300m

High frequency label printer /rfid printer

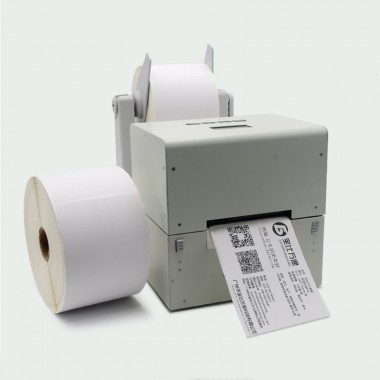

[product name] RFID label printer BB710 HF

[brand] BAOBIWANXIANG

[printing mode] thermal printing, thermal transfer printing

[product features] unique flexible RFID tag printing and RFID HF writing; Large capacity carbon belt loading design, which can place the carbon belt roll with a length of 300m.

[scope of application] anti counterfeiting security, transportation, food, books, animals, agriculture, power management, electronic payment, environmental monitoring, smart home, beneficial services, public health, green ecology

Technical Parameter

1、 Standard characteristics

*Printing mode: thermal, thermal transfer

*Three setting modes are optional: Print write RFID at the same time, print only, RFID write only

*Accurate positioning, operable antenna spacing is only 3mm, label printing is written into RFID at the same time

*Fast and simple carbon belt loading design

*Label roll placement and replacement is simple and fast

*Configure LCD to display the printing status and quantity in real time

*The printing channel can be opened easily, and the paper jam can be cleaned quickly

*Unique movable sensor positioning control, flexible consumables compatibility

*Leading print head energy control

2、 Printer specifications

Print resolution: 203dpi/ 8 dots per millimeter

Print width: max. 4 inches /108mm

Printing speed: printing speed is optional, standard printing speed: 2.5 inch /s (60mm / s)

3、 Media characteristics

Maximum print width 4 inches /108 mm

Medium thickness: 0.25mm to 2.0mm

Media type: heat sensitive / heat transfer media

Label spacing: minimum spacing 3mm

Maximum label roll size: 13 inches /350 mm (outer diameter)

Media type: black label or transparent or continuous paper label

4、 Applicable carbon tape specifications

Axis: 1.0 inch

Shaft length: 110mm

Width of carbon belt: within 110mm

Carbon belt length: within 300m

Maximum outer diameter of carbon tape coil: 65mm (length of carbon tape is about 300m)

5、 RFID technical parameters

RF protocol: iso14443a

Supporting chips: (including but not limited to the following) iso14443a: Mifare classic EV1, Mifare classic, Mifare mini, Mifare desfire EV1, Mifare desfire Ev2, Mifare Pro x, Mifare smart MX, mifate ultralight, Mifare ultralight C, Mifare ultralight EV1, ntag2xx, paypass, logic advant, sle44r35, sle66rxx

NFC：Ntag213 Ntag215

Working frequency: 13.56MHz

Working status indication: display screen

Antenna: built in

6、 Operating parameters

Environmental parameters

Operating temperature: 40 f/4.4 C to 104f/40 C

Storage temperature: -40 f/-40 C to 140 f/80c

Working humidity: 20% - 85% non condensing

Storage humidity: 5% - 85% non condensing

Electrical parameters

External automatic range power supply (in accordance with PFC regulations) input: 100-240Vac, 50-60Hz (60watts)

Physical specifications

Width: 220 mm

Height: 248 mm

Length: 333 mm

Weight: 4.5kg (net weight)

7、 Working parameters

Software

Baobiprinterdriver Bobbie printer driver

Bbdesigner Bobbie print design software

program

Bpl+ (interface file of Bobbie printer)

network connections

USB 2.0

RS-232C serial interface

Ethernet 10/100 interface (RJ45)

Wireless 802.11 b/g (* optional)

Font / graphics

Support user-defined fonts and graphics, including custom patterns, logos and other fonts and barcodes, which can be rotated as needed: 90 degrees, 180 degrees, 270 degrees

Support barcode

One dimensional barcode: Code 39, code 128A, b&c, ucc/ EAN-128, code 93, Codabar, interleaved 2 of 5, UPC-A, upc-e, UPC-A with 2 and 5 add on, upc-e with 2 and 5 add on, EAN 13, EAN 8 with 2 and 5 add on, EAN 8 with 2 and 5 add on, Postnet, standard 2 of 5, industrial 2 of 5, logmars, MSI, Codabar and GS1 DataBar (formally RSS), code 11, China Post

2D barcode: pdf-417, MaxiCode, DataMatrix, QR code, Aztec

8、 Attached accessories

warranty card

USB line

The power adapter

power cord
