BAOBIWANXIANG Technologies Co., Limited

RFlD one-time use identification wristband, integrated RFID technology's unique characteristics in identification and identification wristband use requirements, can be applied to all personnel identification occasions, and has unparalleled superiority for personnel identification.

Unlike traditional handwritten or printed barcode wristbands, information is visible, barcode surface is easily damaged, and the information storage is limited. The RFlD one-time use identification wristband supports to save personal identification information in the chip, even the surface is worn out it does not affect the storage of chip information, The information can be encrypted to protect the information security of wristband users. It is one time use, guarantees the accuracy of identification, and can be read from a long distance, making management more intelligent and convenient. It can be widely used in all personnel identification products, including identification, storage of information, payment, personnel management, personnel flow management analysis, etc.

Wristband Size: 295mm×25mm

Print area: 120mm×23mm

Bands Per Roll: 100PCS

Quantity: 100 pcs per box

Available Colors:

BVP14410F-01-HF03 White

BVP14410F-03-HF03 Red

BVP14410F-04-HF03 Green

BVP14410F-05-HF03 Blue

BVP14410F-06-HF03 Yellow

BVP14410F-09-HF03 Pink

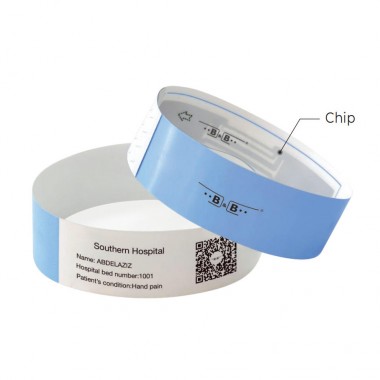

RFID Thermal Printable Wristband Application

Personnel identification;

Mobile nursing;

Patient management;

Quickly and accurately read patient information in infusion,

inspection, surgery, sudden disease and other links;

Ensure the correctness of patients, drugs, dosage, time and usage;

Personnel flow monitoring and regional positioning.

Chip Performance Parameters

Chip: FM11RF08

The FM11RF08S has an 8K bits EEPROM which has 16 sectors with 4 blocks. One block consists of 16 bytes each.

RF Interface

ISO/IEC 14443-A

Operating frequency: 13.56 MHz

Fast communication baud rate: 106Kbit/s

Typical transaction time: ＜100ms

Operating distance: up to 100mm (depending on antenna geometry)

Operating distance: up to 10cm (depending on various parameters as e.g. field strength and antenna geometry)

Half duplex communication protocol using handshake

Encryption algorithm compatible with M1 standard

Contactless transmission of data and supply energy (no battery needed)

EEPROM

1024x8 bits EEPROM memory, Organized in security separated

16 sectors supporting

multi-application use

10 years data retention

Write endurance of 200,000 cycles

Security

UID is unchangeable

Mutual three pass authentication

High security level data communication

Each sector has two keys separately

User can defines assess conditions for each memory block flexibly

Security and anti-crack ability have been enhanced comparing with the old version chip

RFID Thermal Printable Wristband Features

Thermal material, soft bacteriostasis, with soft plastic buckle, comfortable to wear

Antibacterial and anti allergy, safety assurance, quality assurance

Flexible and durable, and can be worn for more than a month

The chip is embedded, which is highly waterproof, alcohol resistant and not easy to be damaged

RFID non visual recognition, not afraid of blocking

Anti human interference, fast identification

Information encryption to fully protect patient privacy

RFID chip has a unique ID number in the world, which cannot be changed or forged

Good environmental compatibility,wear or contamination of the surface will not affect the information reading

One-time use, prevent transfer or removed,make sure the uniqueness and correctness of identified person.

Thermal printing, no consumables, high efficiency and environmental protection, cost saving

Logo Preprinted,includes texs,barcodes,QR codes pictures etc.
